Description
Definition:

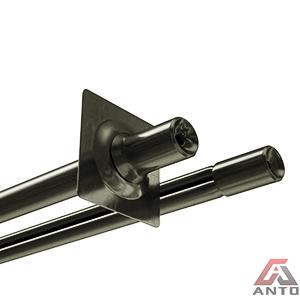

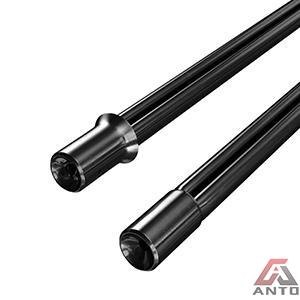

Swellex bolts are a type of expandable rock bolting system used in mining and tunneling applications. They are designed to provide rock reinforcement and support in underground excavations. Swellex bolts consist of a steel tube filled with a grout-like material that expands upon hydration, creating a mechanical anchor within the rock mass.
Uses/benefits:
Swellex bolts are commonly used in the following applications and offer several benefits:
- Rock reinforcement: Swellex bolts are used to reinforce and stabilize rock structures in underground mining, tunneling, and civil engineering projects, providing support against rock movements and preventing collapses.
- Quick and easy installation: Swellex bolts can be rapidly installed using a drilling machine and grouting equipment, allowing for efficient installation in challenging underground environments.
- Versatile and adaptable: Swellex bolts can be installed in various rock types and ground conditions, making them suitable for a wide range of applications.
- Load-bearing capacity: Swellex bolts have high load-bearing capacity, allowing them to withstand significant loads and provide long-term stability to the rock mass.
Specifications:
Swellex bolts have specific specifications depending on the desired load-bearing capacity and ground conditions. Some common specifications include:
- Bolt diameter: Swellex bolts are available in different diameters, typically ranging from 33 mm to 46 mm (1.3 inches to 1.8 inches) or more, depending on the required support capacity.
- Tube length: Swellex bolts are manufactured in standard lengths, typically ranging from 1.2 meters to 4.0 meters (4 feet to 13 feet) or longer, depending on the specific project requirements.
- Expansion ratio: The grout-like material inside the Swellex bolt expands upon hydration to create an anchoring effect. The expansion ratio can vary depending on the specific bolt design and manufacturer.
- Grouting material: The grout-like material used in Swellex bolts is typically a cementitious grout or resin, which provides bonding and reinforcement to the surrounding rock mass.
Types:
Swellex bolts may have variations in design and materials, depending on specific project requirements. Some common types include:
- Standard Swellex bolts: These are the most commonly used Swellex bolts with a standard tube design and grout filling, suitable for general rock reinforcement applications.
- Corrosion-resistant Swellex bolts: Some Swellex bolts are coated or made from corrosion-resistant materials, such as stainless steel or epoxy-coated steel, to ensure durability in corrosive or aggressive environments.
- Customized Swellex bolts: Swellex bolts can be customized to meet specific project requirements, such as longer lengths, special coatings, or unique tube designs.
